Vapor barriers are a crucial element in modern building construction, designed to regulate moisture and protect the structural integrity of homes and commercial spaces. These barriers are specifically engineered to prevent water vapor from passing through walls, floors, and ceilings, where it can condense and cause issues like mold growth, insulation damage, and wood rot. In today's construction practices, vapor barriers are essential for maintaining energy efficiency, preserving indoor air quality, and ensuring the longevity of a building. By managing moisture, vapor barriers help create a stable and healthy environment, particularly in regions where temperature and humidity fluctuations can threaten a building’s structure and performance.

Definition of a Vapor Barrier

A vapor barrier is a material designed to prevent water vapor from passing through walls, ceilings, and floors, protecting the structure from moisture-related damage. Vapor barriers are typically made from impermeable or low-permeability materials, such as polyethylene sheeting or foil, which block water vapor from entering the building envelope. By stopping moisture in its vapor form, these barriers help reduce the risk of mold growth, insulation degradation, and structural decay, making them an essential component in moisture control for modern buildings.

The Difference Between Vapor Barriers and Air Barriers

• Vapor Barriers: Specifically designed to block water vapor from entering a structure. They prevent moisture from passing through building materials like walls and ceilings, ensuring a dry, stable indoor environment.
• Air Barriers: Prevent the movement of air through the building envelope but may still allow some moisture to pass. While they help with energy efficiency by stopping drafts, they don’t necessarily block vapor from entering and condensing within walls or ceilings.

Some materials, like spray foam insulation, have the ability to function as both a vapor and air barrier. This dual-purpose function provides comprehensive protection against both air leaks and moisture, making it an effective solution in certain applications.

Understanding Water Vapor

Water vapor is moisture in its gaseous state, naturally present in the air. It moves through the atmosphere in a process known as vapor diffusion, which is driven by differences in temperature and humidity. Water vapor naturally migrates from areas of high concentration (warm, humid air) to areas of lower concentration (cooler, drier air).

• Condensation: When warm, moist air comes into contact with a cold surface, the water vapor condenses into liquid water. This process can lead to moisture problems such as mold, wood rot, and insulation damage in buildings.
• Vapor Drive: This refers to the movement of water vapor through building materials due to temperature and humidity differences between the inside and outside of a structure. Managing vapor drive is critical to preventing moisture buildup and ensuring the durability of a building.

Permeability and Vapor Diffusion

Permeability, in the context of vapor barriers, refers to a material’s ability to allow water vapor to pass through it. The permeability of a material is measured in perms, which indicate how much moisture can diffuse through a given material.

• High-Permeability Materials: These materials allow more water vapor to pass through. Examples include house wraps and certain types of insulation. They are typically used in areas where breathability is important to avoid trapping moisture.
• Low-Permeability Materials: These materials block water vapor effectively, preventing moisture from passing through. Examples include polyethylene sheeting and foil, which are commonly used to create vapor barriers in walls, floors, and ceilings.

Types of Vapor Barriers by Permeability Rating:

• Class I (Impermeable): 0.1 perms or less. These barriers, such as polyethylene sheeting or aluminum foil, offer maximum protection against vapor diffusion and are ideal for areas with high moisture risk.
• Class II (Semi-Permeable): 0.1 to 1.0 perms. Materials like kraft-faced insulation fall into this category, allowing limited moisture to pass through while still providing significant vapor control.
• Class III (Permeable): 1.0 to 10 perms. Materials such as latex paint allow more vapor to diffuse, making them suitable for applications where some moisture movement is necessary to prevent trapped moisture.

Understanding the science behind water vapor and permeability helps builders and homeowners choose the right vapor barriers for specific applications, ensuring effective moisture management and long-term building performance.

Preventing Vapor Diffusion

Vapor barriers are crucial in controlling moisture by blocking the diffusion of water vapor from areas of high humidity to cooler, drier areas. During the winter, for example, warm, moist indoor air naturally migrates toward cooler exterior walls. Without a vapor barrier, this water vapor can pass through walls, ceilings, and floors, where it may condense as it meets colder surfaces. This condensation can lead to serious issues like mold growth, insulation degradation, and wood rot. By stopping vapor diffusion, vapor barriers help maintain the integrity of the building’s materials and prevent moisture buildup inside structural components.

Where Vapor Barriers Are Most Effective

Vapor barriers are most effective when installed in areas of a building where moisture control is critical. Common key areas include:

• Exterior Walls: In cold climates, vapor barriers prevent moisture from entering wall cavities, where condensation can occur and damage insulation and framing.
• Roofs and Attics: Vapor barriers keep moisture from rising into attics, where it can condense on colder roof surfaces, leading to mold and structural issues.
• Basements and Crawlspaces: Installed in these areas, vapor barriers stop ground moisture from migrating into the home, helping to lower indoor humidity levels and protect against moisture-related damage.

Vapor Pressure and Vapor Drive

Vapor pressure refers to the force exerted by water vapor in the air. When warm, humid air meets cooler, drier air, a natural movement of vapor occurs from areas of high vapor pressure to areas of low vapor pressure, a process known as vapor drive. This movement can cause moisture to travel through building materials, leading to condensation and potential damage.

• Vapor barriers work by stopping vapor drive, preventing water vapor from moving through walls, ceilings, or floors. This helps protect insulation and building materials from becoming saturated with moisture, which would otherwise reduce their effectiveness and lead to long-term structural damage. By controlling vapor pressure, vapor barriers play a critical role in maintaining a building’s overall moisture balance and preventing costly repairs.

Vapor Barriers in Cold Climates

In cold climates, vapor barriers are typically installed on the interior side (the warm side) of the insulation. This placement prevents warm, moist indoor air from reaching the cold exterior walls, where it could condense and cause moisture-related damage. By blocking the diffusion of water vapor, vapor barriers help maintain a dry environment within walls, which is essential for the insulation to remain effective.

• Moisture control in cold climates is crucial because condensation inside walls can lead to mold growth, wood rot, and degradation of insulation. Preventing this moisture from reaching the cold exterior walls helps protect the structure and ensures the insulation performs optimally, preserving energy efficiency and structural integrity.

Vapor Barriers in Warm Climates

In warm, humid climates, vapor barriers are often installed on the exterior side of the insulation. This setup blocks moisture from the outside environment from entering the building, where it can cause condensation issues inside walls.

• Preventing external humidity from penetrating the building is key to maintaining the integrity of the structure. Without proper vapor barriers, warm, moist air from the outside can enter the walls, condense as it cools, and lead to mold growth and insulation degradation. By placing the vapor barrier on the exterior, moisture is kept out, protecting the interior environment.

The Importance of Ventilation with Vapor Barriers

Proper ventilation plays a crucial role in enhancing the effectiveness of vapor barriers, especially in moisture-prone areas like attics and crawlspaces.

• Ventilation regulates indoor humidity: Ventilation systems help expel excess moisture, preventing moisture buildup behind vapor barriers, which can otherwise lead to trapped condensation and mold.
• Attics and crawlspaces: In these areas, ventilation works alongside vapor barriers to maintain a balanced moisture environment, ensuring that any excess moisture is effectively removed and does not accumulate within the structure.

By aligning the placement of vapor barriers with the climate and ensuring proper ventilation, homeowners can maintain moisture control, prevent mold growth, and protect the energy efficiency and longevity of their homes.

Polyethylene Sheeting

Polyethylene sheeting is one of the most widely used vapor barrier materials due to its impermeability and cost-effectiveness. Typically available in different thicknesses (e.g., 6 mil to 20 mil), polyethylene is effective at preventing moisture from passing through, making it ideal for a variety of applications.

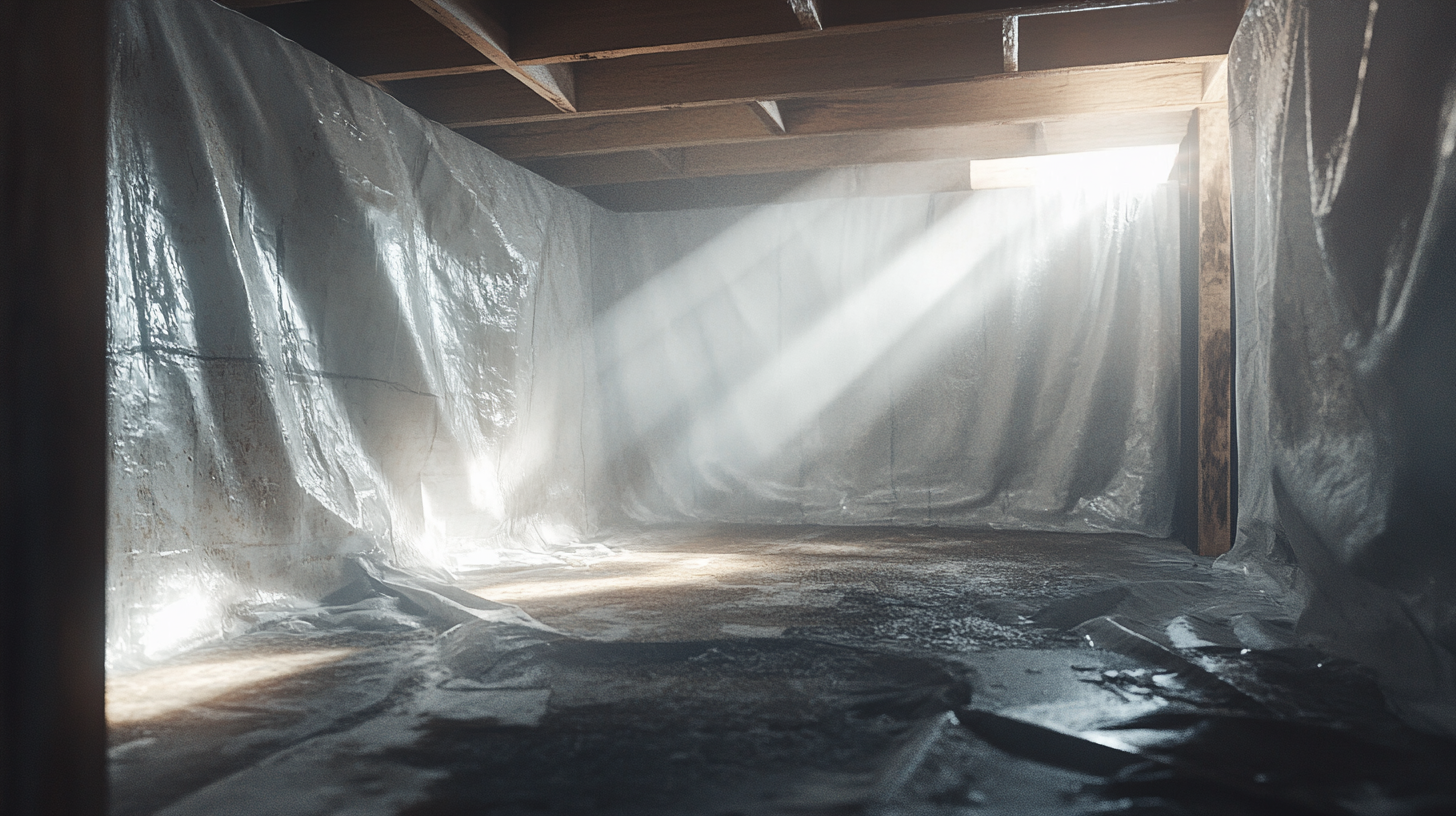

• Typical uses: Polyethylene sheeting is commonly installed in walls, floors, crawlspaces, and ceilings to prevent moisture infiltration. It is particularly useful in basements and crawlspaces, where ground moisture can cause significant humidity and structural issues.

Foil-faced Insulation and Gypsum Board

Foil-faced insulation and gypsum board serve a dual purpose by acting as both insulation and vapor barriers. These materials feature a reflective foil surface that not only blocks moisture but also reflects heat, enhancing the thermal performance of the building.

• Common applications: Foil-faced insulation and gypsum board are frequently used in areas where additional insulation is needed alongside moisture control, such as attics, roofs, and exterior walls. This combination of insulation and vapor barrier helps maintain indoor comfort and reduce energy costs.

Liquid-Applied Vapor Barriers

Liquid-applied vapor barriers offer flexibility and ease of use, particularly in buildings with complex architectural designs or irregular surfaces. These barriers are applied as a liquid, creating a continuous, seamless membrane once they dry.

• Seamless application: The seamless nature of liquid-applied barriers eliminates the risk of gaps or tears that can occur with sheet-based barriers, ensuring better overall protection.
• Ideal for irregular surfaces: Liquid-applied vapor barriers can easily be applied to irregular or complex surfaces, making them a preferred choice for architects and builders working on unique or challenging designs. This adaptability allows them to be used in areas where traditional barriers may struggle to provide full coverage.

These common materials offer different advantages depending on the building design and the specific moisture control needs, providing flexible options for ensuring effective vapor management in modern construction.
